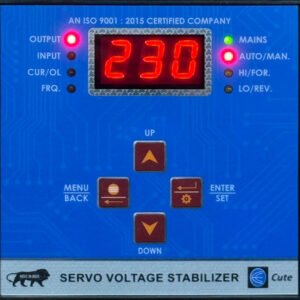

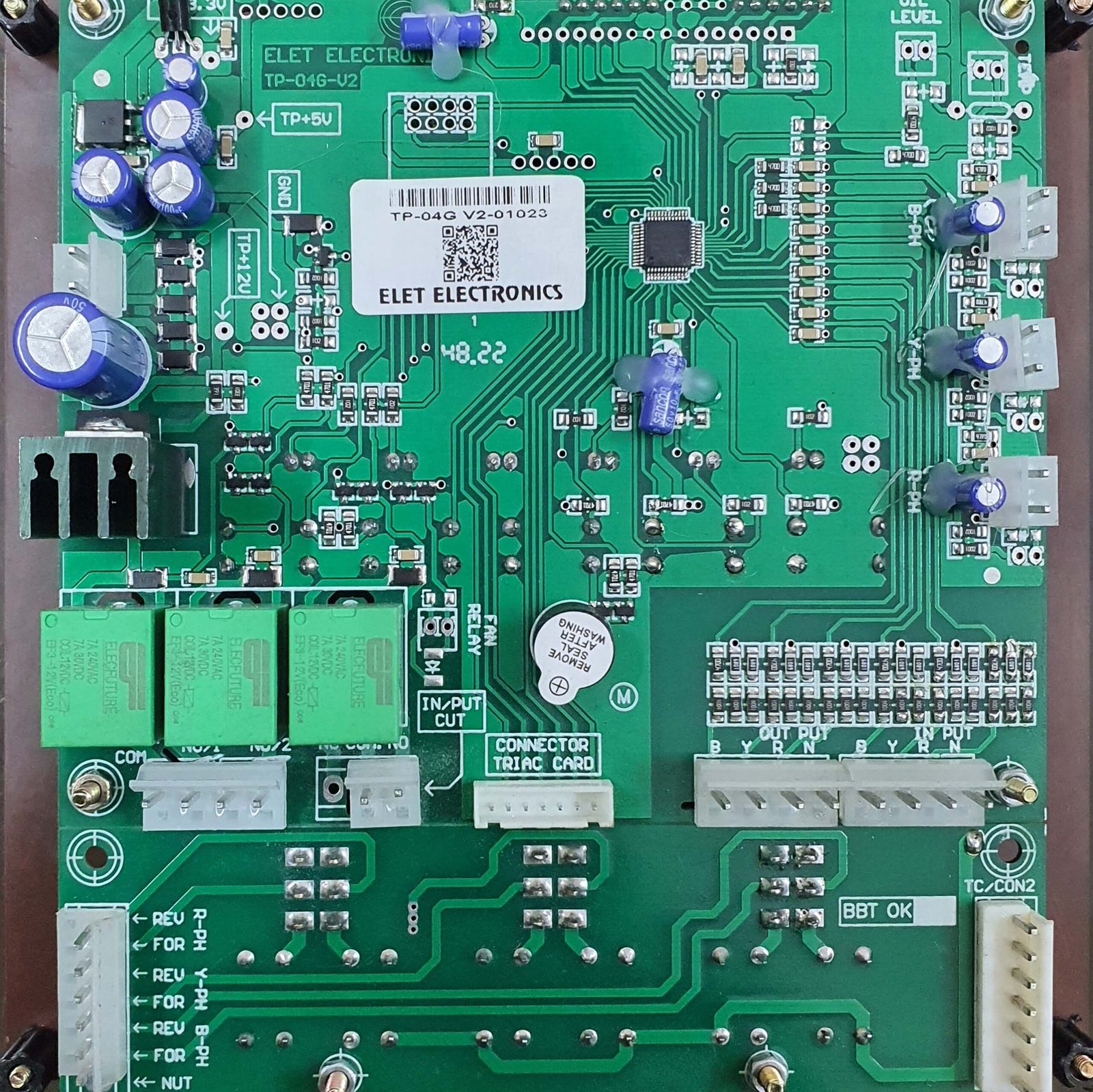

L-Series TP-04GM servo control card is a three-phase servo controller with an LCD display that offers advanced features like:
- True RMS Metering – Voltage, Current, Frequency.
- TRIAC based controlled voltage for enhanced life of Servo Motor.
- Over Load Protection with settable Cut-off Time & also with respect to Intensity of occurred fault.
- Over Voltage, Under Voltage protection with settable Cut-off Voltage & Time.
- Password Protection & Software Calibration.
- No external card required for MCCB.
- Reverse Phase Protection or Correction.
- Over Temperature Cut-Off and Oil Level Indicator.
- Input High/Low Cut.
- Manual section to control output voltage in case digital section is not working.
Company name can be customized on LCD display. The transformer and CT are connected externally.
